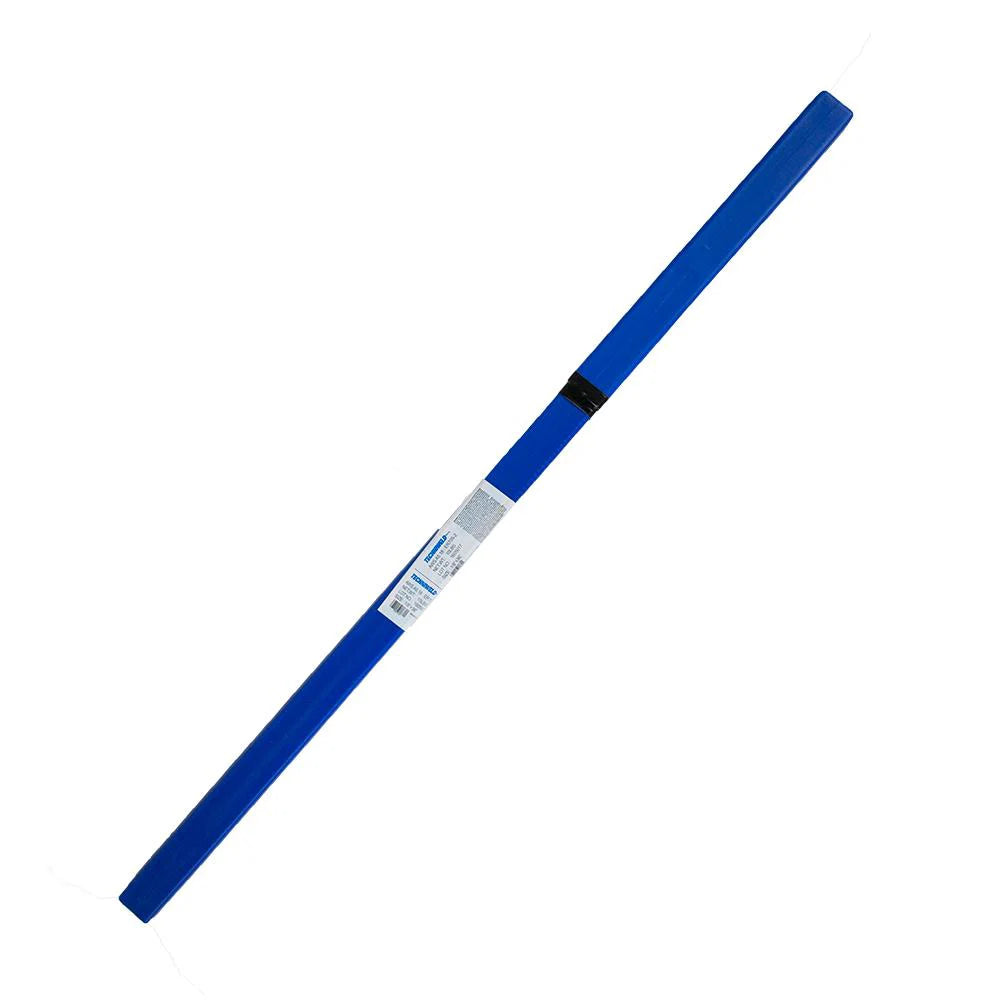

80S-B8 3/32 Diameter 36 Inch Tig ROD

80S-B8 3/32 DIAMETER 36 INCH TIG Rod

Application

These include steels such as A335 Grade P9, A336 Grade F9, A217 C12 (Cast), and A199, A200, and A213 grade T9. A preheat and interpass temperature of not less than 350°F should be maintained during welding. ER80S-B8 is used primarily in the petrochemical and refinery industries. It was designed for welding materials of similar composition

Feature

• Is a low alloy copper-coated tig rod with 0.5% Mo content designed for welding low-alloy steels with high tensile strength and creep resistance.
• Contains a high level of deoxidizers (Mn and Si) and also molybdenum for increased strength.
• High toughness at low temperatures with a nominal 1% Ni or less.
• Preheat and interpass temperatures are typically kept between 375-425°F.
• Due to the low carbon content, and thus lower strength level, this alloy exhibits greater resistance to cracking and is more suitable for welds to be left in the as welded condition.
• Suitable for single and multi-pass welding of a variety of carbon and low alloy steels.
• It contains high levels of manganese and silicon to provide good wetting as well as good rust and scale tolerance.
• These creep resistant steels are typically used in chemical industries for heat exchangers, boilers, piping and pressure vessels at service temperatures up to 1100°F.
