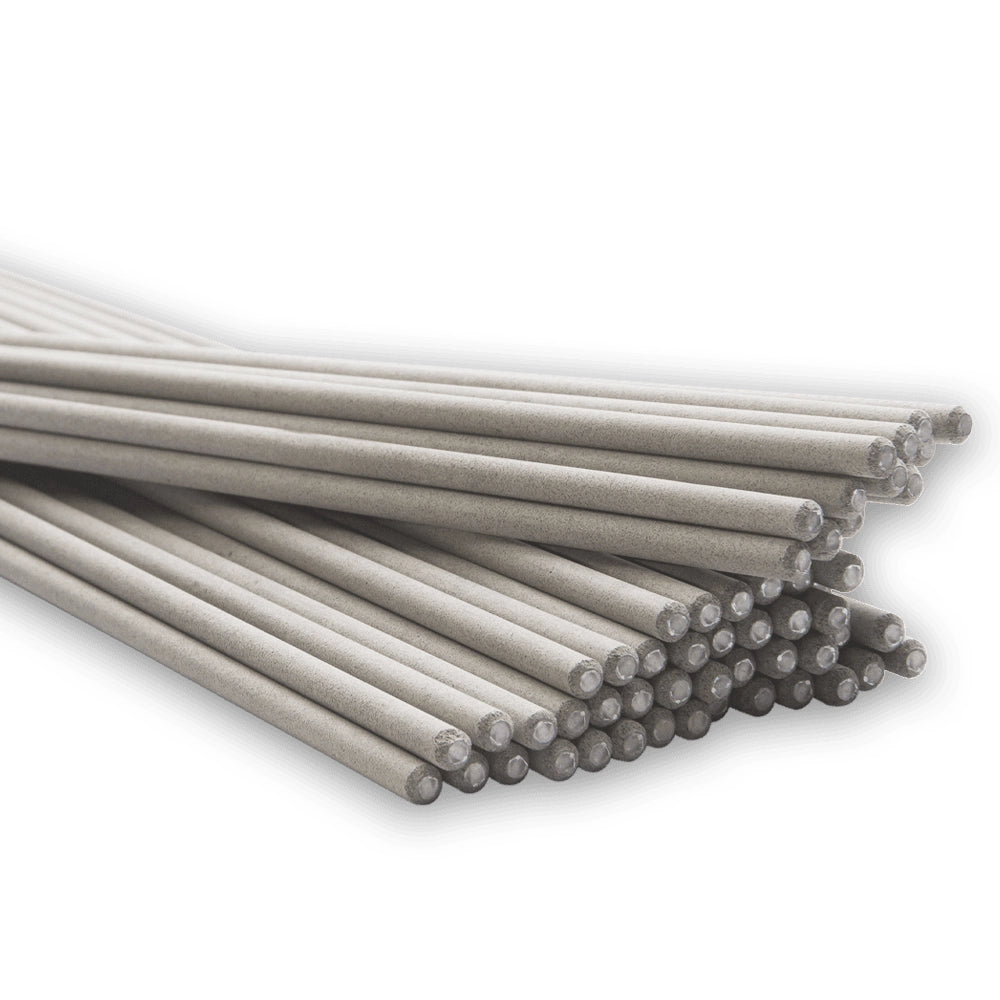

E6010 3/16 Diameter Electrode 10LB Tube Vacuum Packaged

E6010 3/16 DIAMETER ELECTRODE 10LB TUBE VACUUM PACKAGED

Application

Can be used to weld the following API 5L steels: Grade A, B, X-42, X-46, X-52, X-56 and for the root pass on material up to X-80. Used for construction and shipbuilding, general purpose fabrication, maintenance welding, out-of-position X-ray welds, pipe welding and vertical and overhead plate welding.

Feature

• One of the basics for pipe and plate stick welding, are old standbys that are easily handled by industrial transformer-type welding machines.
• A good choice for field repair work, as the digging arc can burn through rust, dirt and paint.
• An all position electrode including vertical down hand.
• Use on pipe or general welding on large diameter pipe.
• Operators like E6010 electrodes because the molten metal stays in the joint and doesn’t fall down on them as much compared to other all-position electrodes.
• A thin layer of slag that removes easily, simplifying cleanup and preparation for the next welding pass.
• Conform to certification: AWS A5.1 and ASME SFA A5.1.
• Vacuum sealed to optimize performance.
• Ideal for areas requiring deep penetration
• Minimal surface preperation required which saves more time!
• Minimal slag build up

Package Information

Specifications
